About This Demo

SITL Forge - FPV Laboratory Demo is a free taste of the physics-first quadcopter simulator and engineering workbench. The full 1000Hz simulation engine, calibrated motor models, virtual workbench, OSD, debug graphs, and built-in PID flight controller — no compromises on fidelity, no time limits. Content is limited to two airframes (7" and 10") and one race track; upgrade to unlock every airframe class from 2" to 13", the complete parts catalog, all race tracks, and integration with real flight-controller firmware.

---

What's in the demo

• Full 1000Hz physics simulation (Jolt Physics with the calibrated VMG motor model)

• Built-in PID flight controller in ACRO, ANGLE, and HORIZON modes

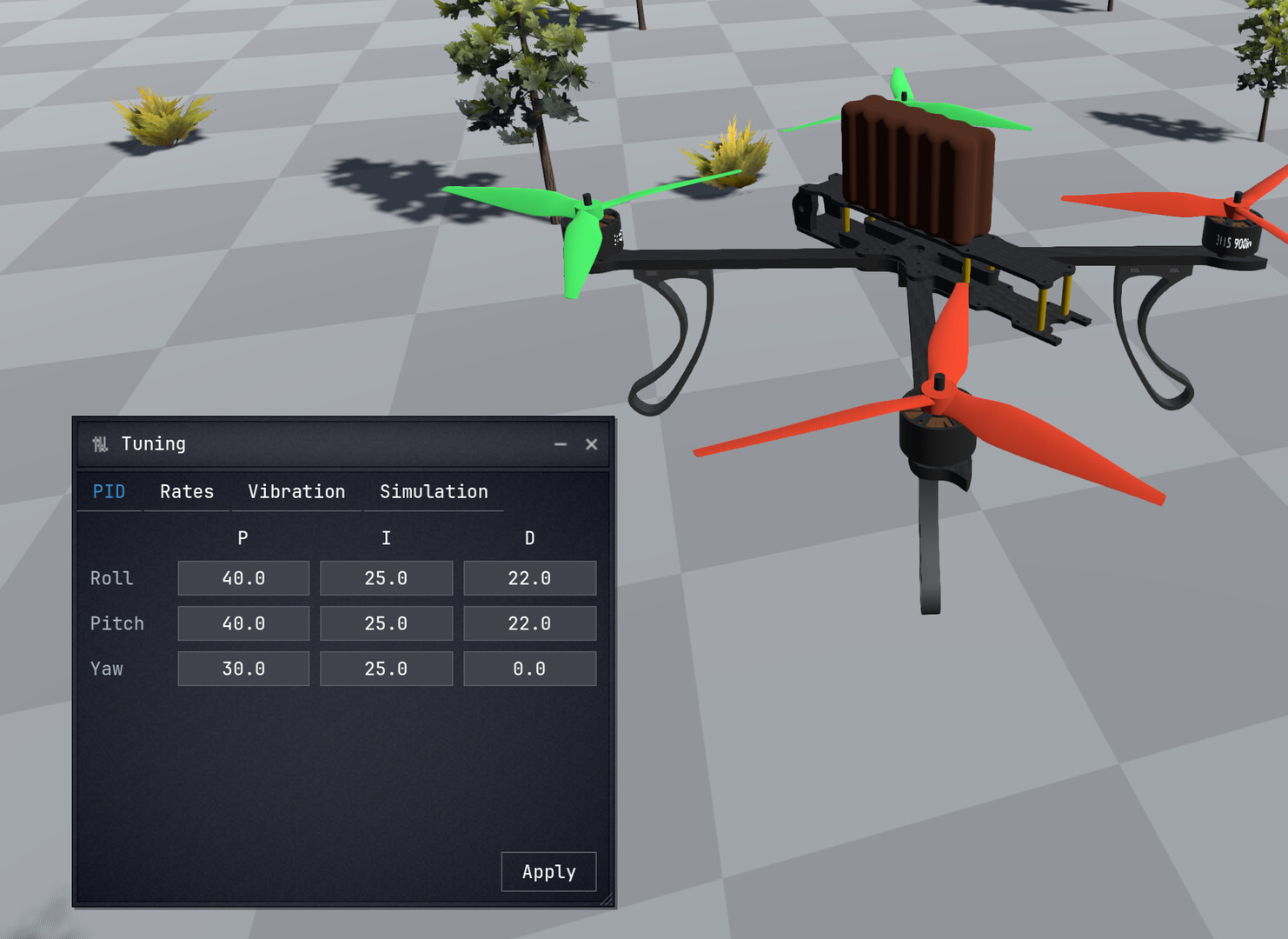

• PID and Rates tuning with live feedback

• Two detailed airframes: a 7" and a 10"

• Two calibrated motors and three matched propellers

• One ESC stack and two batteries (Li-ion and LiPo)

• The Practice Oval race track with lap timing

• Full OSD, debug graphs, and force / drag visualization

• Procedural motor audio generated from RPM, current, and thrust

• Joystick and RC transmitter support

• FPV camera with lens distortion, chromatic aberration, and vignetting

• Interface in English, Ukrainian, and Simplified Chinese

---

What the full version unlocks

• Every airframe class — 2" micro, 5" freestyle, 7", 10" and 13" cinelifters and heavy carriers, each a detailed real-world design

• Complete parts catalog — dozens of motors, propellers, ESCs, and batteries calibrated to real bench data

• All race tracks — from a real-world time-trial layout to a three-dimensional tower course

• Vibration tuning — inject configurable noise into the simulated gyro and accelerometer to stress-test PID stability

• Payload simulation — attach and release boxes, tubes, and custom weights mid-flight

• Simulation feature toggles — motor thermals, ESC damage, battery wear, motor drag, and more

• Optional DLC bridges to real firmware running in software-in-the-loop mode (Betaflight and iNAV, sold separately; ArduPilot planned)

• With the Betaflight DLC: an MSP bridge for connecting Betaflight Configurator directly to the simulated drone

---

Same engine. Same fidelity.

The demo runs the exact same physics, audio, and rendering pipeline as the full version. What you fly here is what you get — only the parts catalog and advanced features are gated.

• Motor iron losses (eddy current + hysteresis) calibrated from real dyno data

• Per-propeller thrust and torque coefficients fitted across multiple motor + prop combinations

• LiPo discharge with voltage sag, internal resistance, and state-of-charge tracking

• ESC dead-time losses, timing advance, current limiting, and thermal derating

• Aerodynamic drag computed via virtual wind tunnel with shader-based surface analysis

• Rotor aerodynamics: climb and descent inflow, rotor drag, and ground effect

---

Who is this for?

• FPV pilots evaluating whether the simulator fits their workflow before buying

• Drone engineers and hobbyists who want to test physics fidelity firsthand

• Builders and tinkerers curious about the engine driving SITL Forge

---

The demo is fully self-contained — no online activation, no time limits, no recurring prompts. Just install, connect a controller, and fly.
