About This Software

MPE Keys is a real-time MIDI keyboard and piano visualizer with a built-in MPE synth. It shows what your hands are doing, key by key, from any MIDI keyboard you already own. The pitch bend and mod wheels sit beside the keys, and a Grand Staff writes it all down as live sheet music. For the camera, the stage and the studio.

No keyboard at hand? Typing Keys plays it from your computer keys and Mouse Mode from the pointer, and both send real MPE out of the app.

One module, many ways to read it

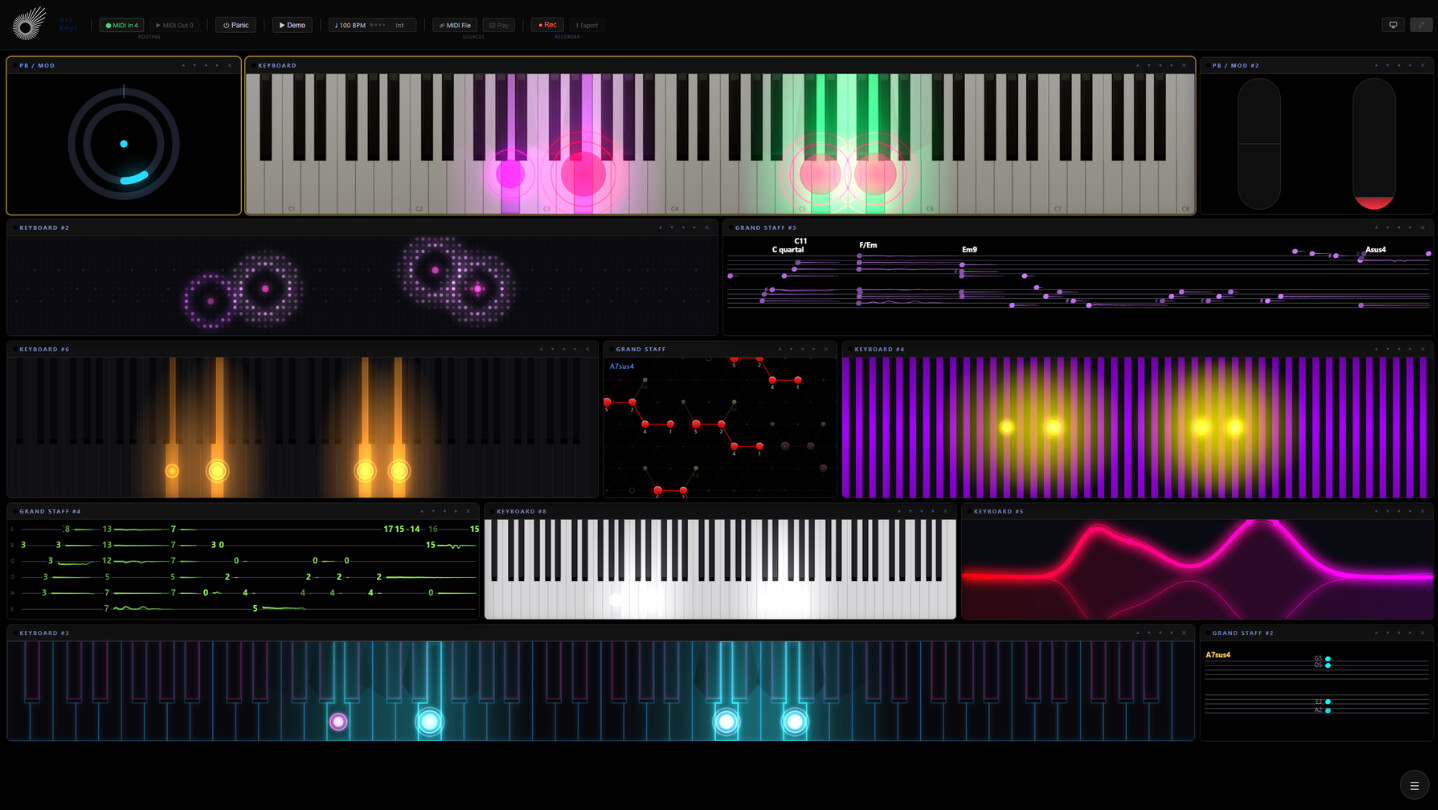

Classic, Glass, Neon, Minimal, Dark, Fingerboard, Motion, Microtonal and three Pixel Grid layouts. Every design draws the same four readings, and every color in a design can be changed. Glow Trail leaves a fading trail behind each note, on every design. Motion brightens with timbre, and every strike on a Pixel Grid sends a ripple across the LEDs.

What you see is what you hear

VOLT is an MPE synth built into the app and switched on from the first start, so the keys play without a DAW or another device. Every note sounds with its own pressure, slide and bend. Your controller, a MIDI file, Typing Keys and the mouse all play it, and MIDI Out still reaches any other synth. Its effects sit in tabs, its window resizes from the corner, and a take can be saved as a WAV file with VOLT's sound, 48 kHz, 24-bit.

Four things happen on one key

• Pressure. Moves the key's color between a low and a high tone, or fills it from the bottom up like a meter.

• Pitch bend. A dot slides along the keys to the pitch the note actually sounds, scaled by the bend range your instrument reports.

• Velocity. Sets how bright the key lights. A hand split gives the left hand a color pair of its own.

• Timbre. CC74 rides its own ring, with its own color pair, size and intensity.

Note names on the keys if you want them, spelled from the key of the Grand Staff.

Scales and chords

• Scale Lock. Pick a root and one of 13 scales, or follow the key of the Grand Staff. Every note you play on the screen lands in the scale, and glides snap to it as strongly as you set.

• Chords on keys. Turn on Learn, tap a key, play a chord: from then on that key plays it, in every octave. Teach it on the screen or on your MIDI keyboard. Twelve keys hold twelve chords.

Pitch bend and mod wheels

PB / Mod. Master pitch bend and modulation as two sliders or one dial, both MPE zones side by side. A third face is the Expression Pad, a stack of tilting rings you play with the mouse, sending real channel pressure and CC74 to every sounding note.

Sheet music: play it, then print it

Record a take and the same playing comes back out as a page: treble and bass clef, the key signature you picked, chord symbols over the systems and the pitch bend drawn as a curve out of the notehead, with cent values next to microtonal notes.

Five views: Now, Time, Flow, Weave and Tab. The same take also leaves the app as a standard .mid, as a CSV and as a WAV. The Tab view has an all-fourths tuning (EADGCF) next to the guitar tunings.

It plays, too

• Typing Keys. Two manuals under your hands on the computer keyboard, with the sharps on the row above. Key positions, not letters, so QWERTY, QWERTZ and AZERTY fall under the same fingers. Space is the sustain pedal.

• Mouse Mode. Click or touch a key to send a real MPE note. Drag sideways for pitch bend, up for pressure, down for timbre. Each pointer gets its own member channel, so multi touch chords work.



• Hotkeys. The other direction: notes and controllers you play press real computer keys in whatever app is in front, so a pedal can arm the recording in your DAW. A printable key strip puts the map on paper behind your keys.

• Demo Mode. Generates MPE without any controller, for setting a look up before anyone is watching.

Specifications

• Controller: any class-compliant MIDI device. An MPE controller shows its full expression straight away; an ordinary keyboard lights the keys it plays

• Key range: 88, 61, 49 or 25 keys

• Tuning: quarter tones, just intonation, 2 to 96 equal steps or a Scala file, on every design with cent marks on the keys, and your synth is retuned to match

• Stage and stream: Stage View shows only the picture, Transparent BG only the keys over your stream

• MIDI in and out: to a hardware synth directly, or to a software synth through a virtual port such as loopMIDI

• MIDI files: played through the same path as live input, with tempo, time signature, key signature and lyrics

• Record and export: a standard .mid, a CSV, a WAV with VOLT's sound, or a printable notation sheet

• Presets and snapshots: one browser with favorites and your own looks under Mine, global snapshots for the whole window, undo and redo

• Tempo: internal or MIDI Clock, tap tempo

• Themes: nine color themes for the window, from Black to Paper

• MIDI Learn: map a hardware knob to a control
