About This Software

Decode the Ancient Measure of Time

Compendium of the Sundial: An Interactive Astronomy Guide merges rigorous celestial mechanics with real-time 3D rendering to create a perfect virtual astronomy lab. Whether you are an astronomy enthusiast, a student, or simply curious about historical scientific instruments, this interactive experience allows you to deeply understand the mathematical mysteries between the sun, the Earth, and light.

An Ever-Expanding Museum of Sundials

Through continuous major updates, our simulation library has been vastly expanded. You can freely switch between and examine the precise structures and projection principles of the following instruments:

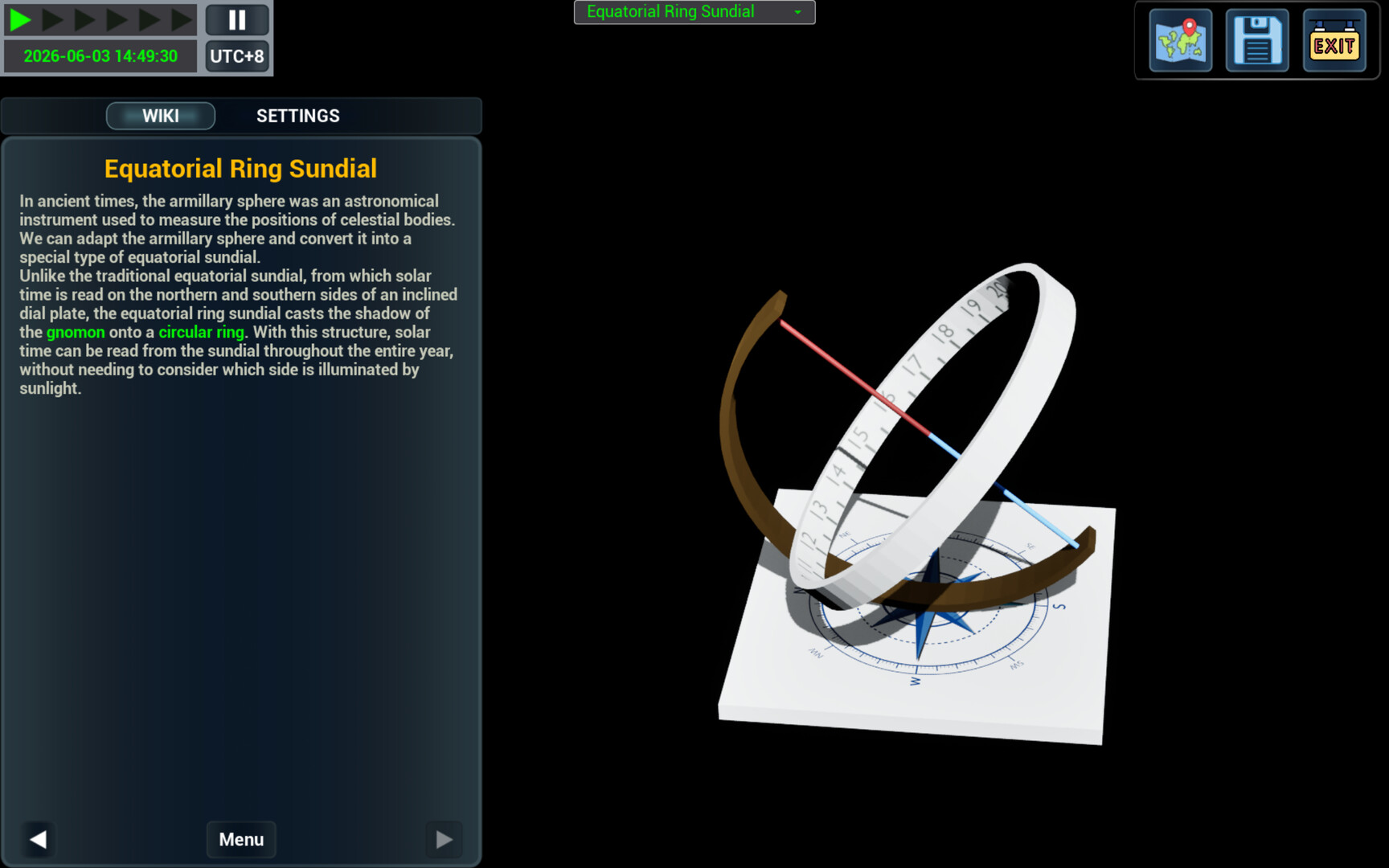

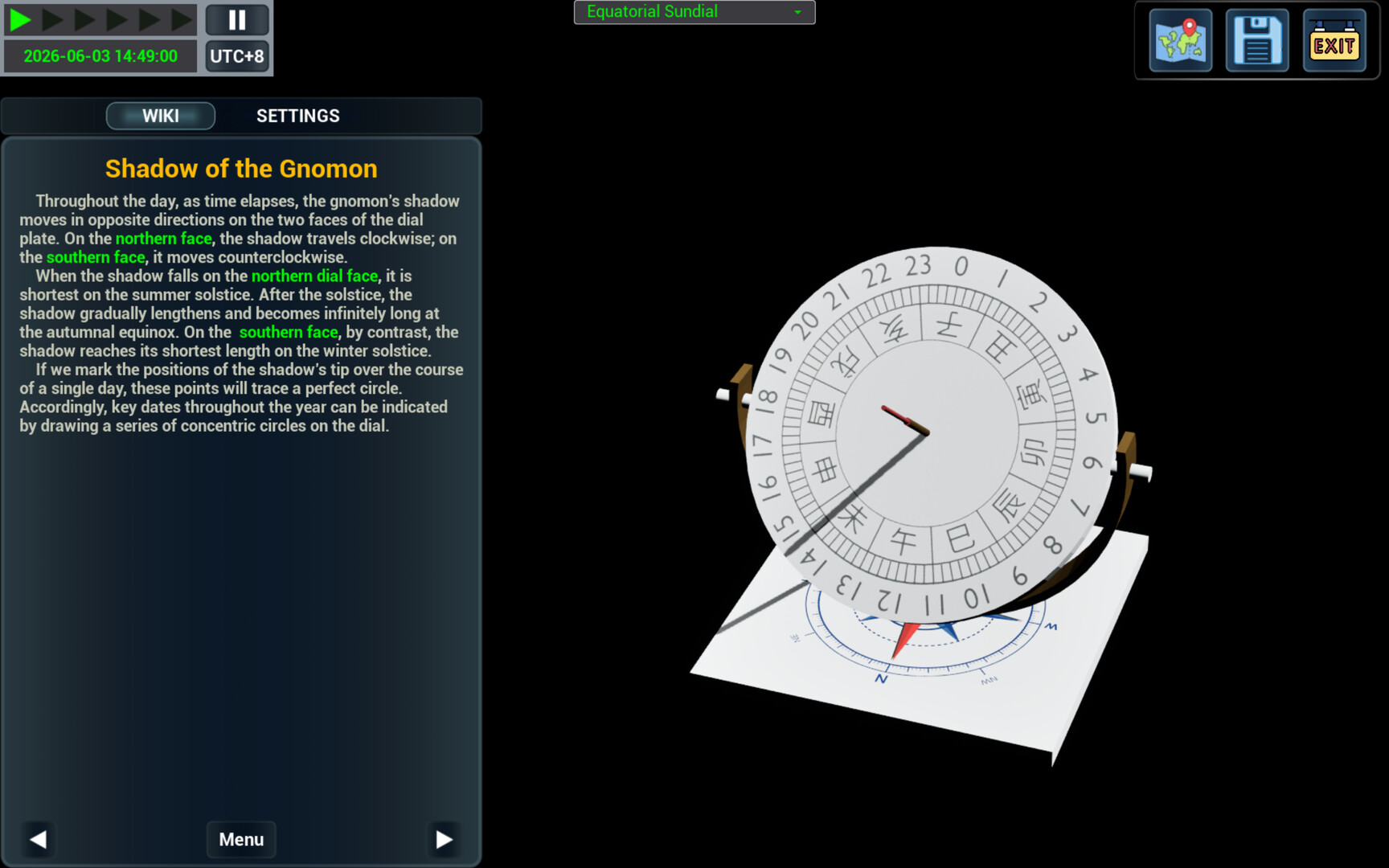

• Equatorial & Equatorial Ring Sundials: The most fundamental and elegant uniform time projections.

• Horizontal & Vertical Sundials: Classic designs demonstrating how hour lines distort depending on your local latitude.

• Polar & Altitude Sundials: Unique variants utilizing different geometric planes and solar altitudes to read time.

• Analemmatic Sundial: A fascinating simulation of a dial with a movable gnomon that shifts based on the time of year.

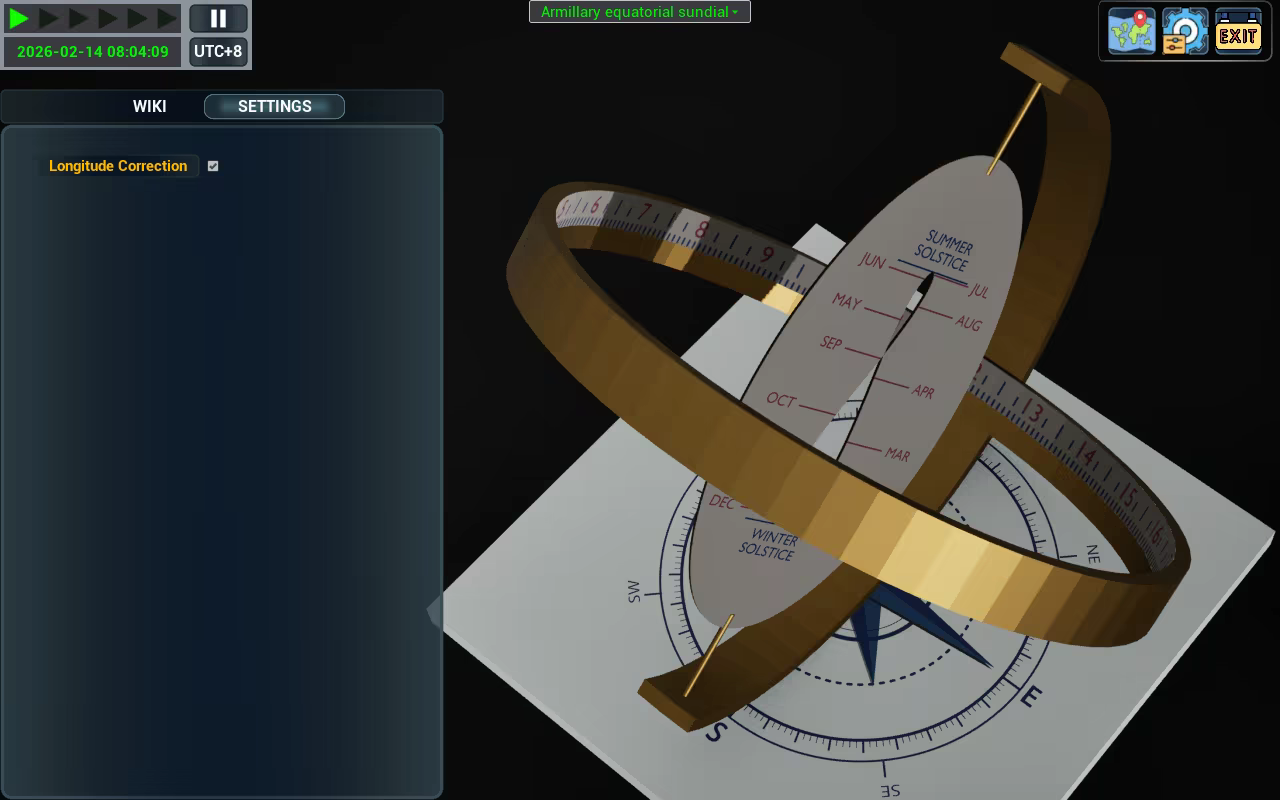

• Armillary equatorial sundial: Cleverly integrates the figure-8 analemma curve into its hour lines to correct the Equation of Time. This brilliant mechanism visually accounts for the eccentricity and axial tilt of Earth's orbit, allowing you to read standard mean solar time (clock time) directly from the sun.

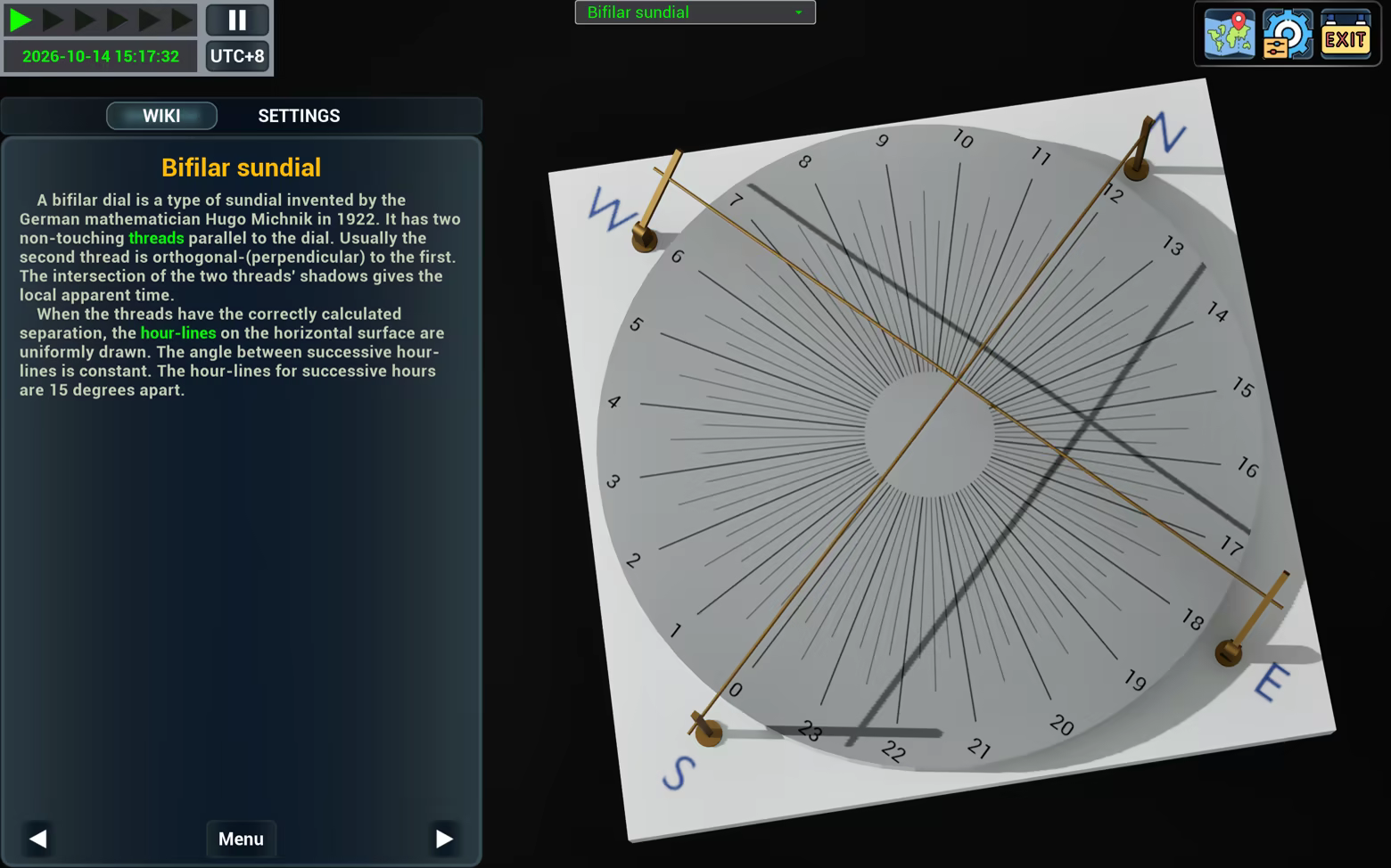

• Bifilar Sundial: Utilize the intersecting crosshair shadow of two orthogonal, hovering threads to pinpoint both time and solar declination.

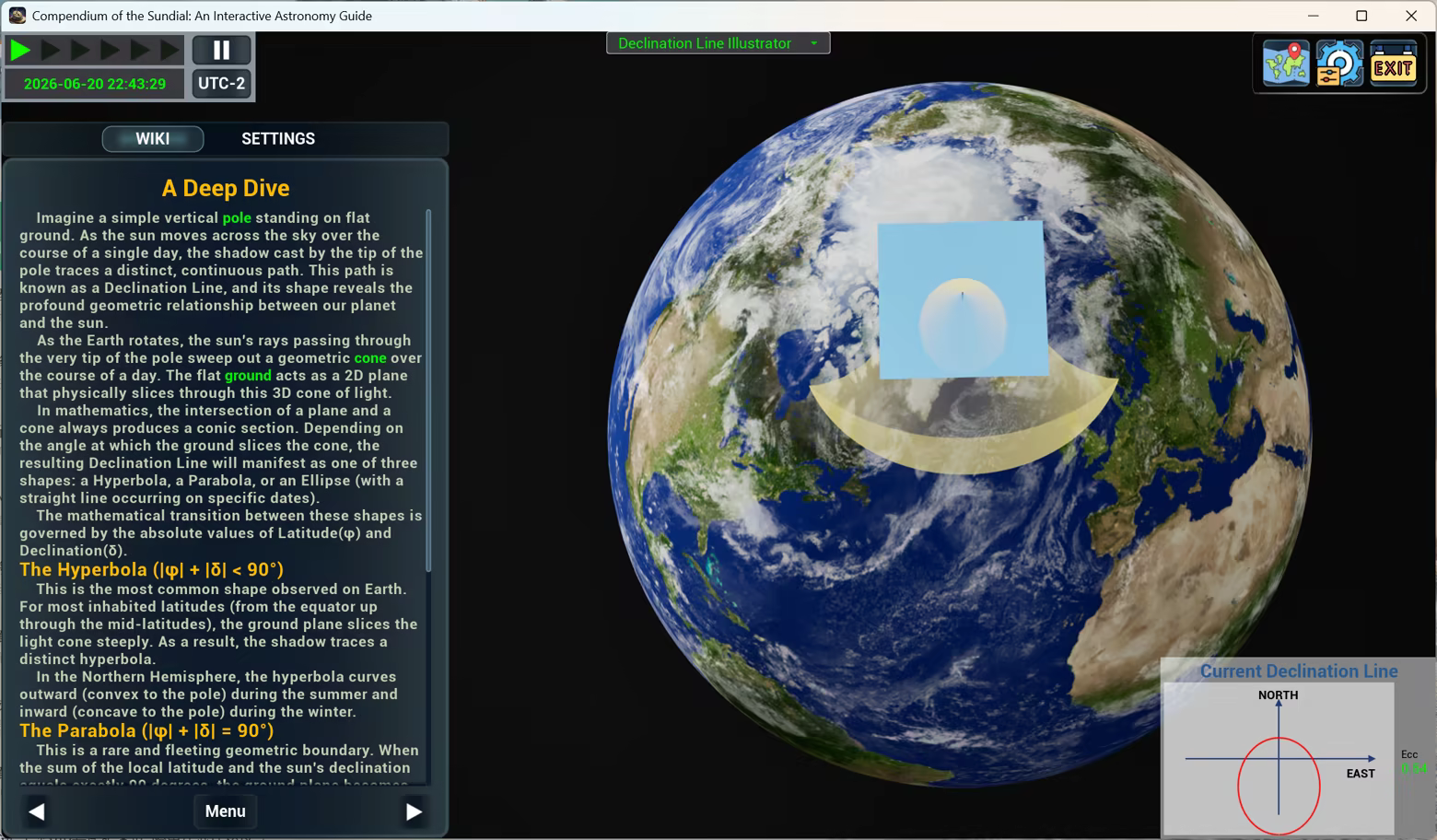

Deep Dive into Declination Lines & Conic Sections

Sundials do more than just tell time; they record the changing of the seasons. In the new "Deep Exploration" module, witness how the shadow cast by the tip of a vertical gnomon (the nodus) traces continuous declination lines throughout the day. As the Earth rotates, the sun's rays passing through the tip sweep out a geometric cone in 3D space, which is then mathematically "sliced" by the flat ground. Depending on the specific combination of your local latitude ($\phi$) and the solar declination ($\delta$), the daily path of the shadow will perfectly form different conic sections:

• Hyperbolas: Observe the shadow tracing beautiful outward or inward-curving arcs in most mid-latitude regions.

• Parabolas: Capture the rare geometric boundary on specific days when the ground plane perfectly parallels the edge of the light cone.

• Ellipses: Travel to high-latitude regions during the midnight sun to watch the shadow draw complete, closed loops across the dial.

Key Features

• Global Latitude/Longitude Adjustment: Drag the slider to instantly teleport across the globe. Watch the physical structures and shadow behaviors dynamically mirror and recalculate as you cross from the Northern to the Southern Hemisphere.

• Dynamic Time Control: Accelerate time to observe the patterns of diurnal motion or seasonal changes in a matter of seconds.

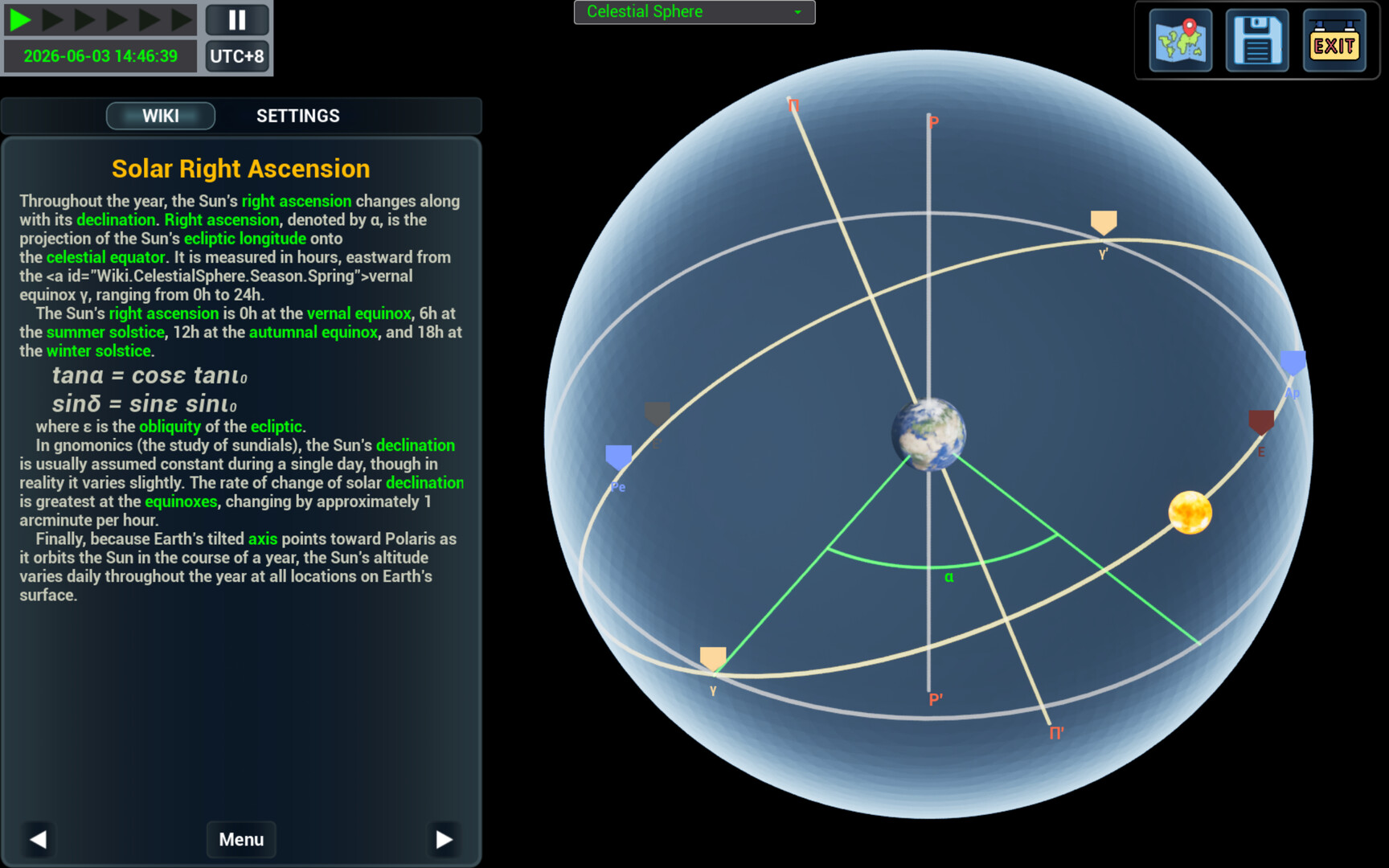

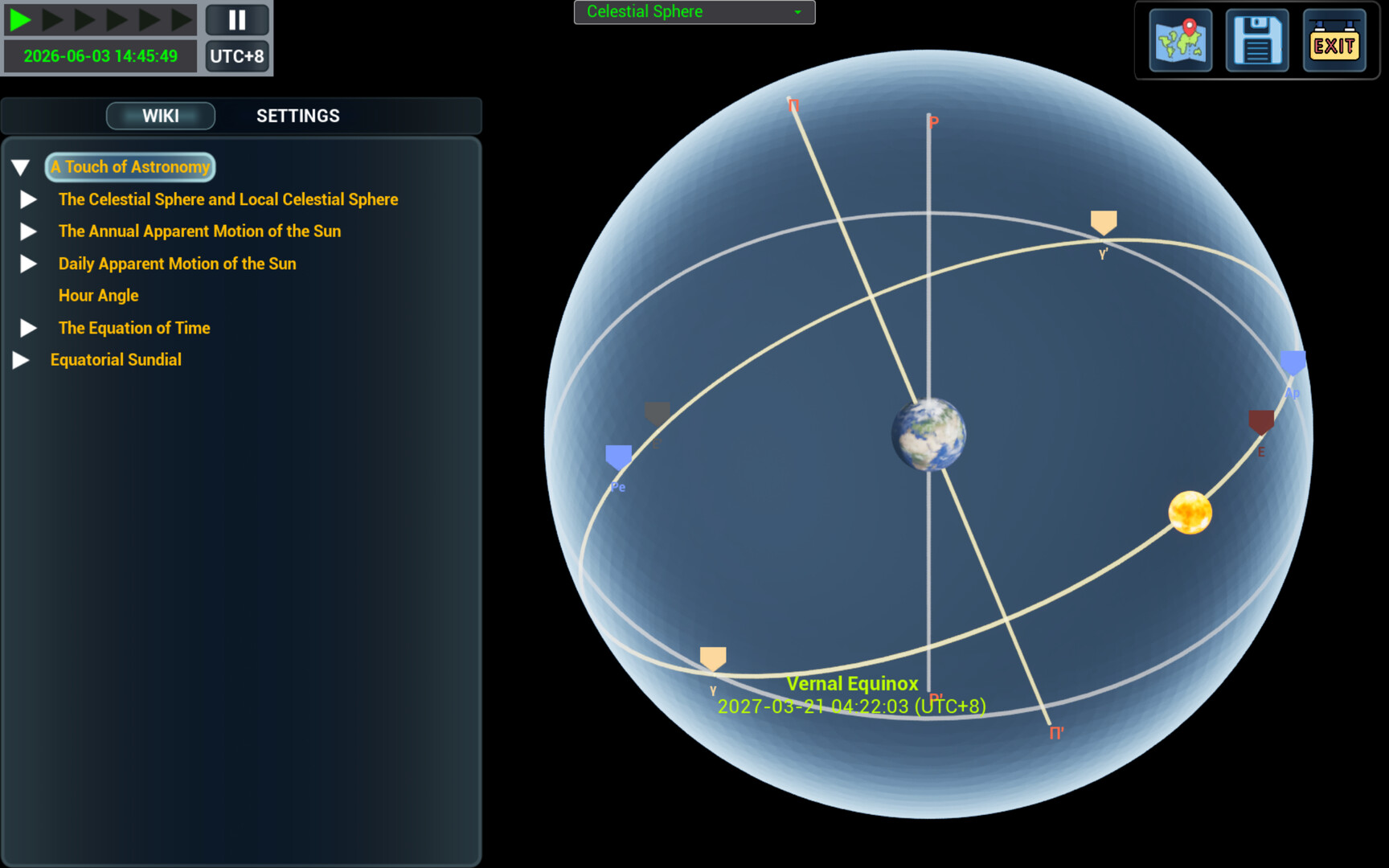

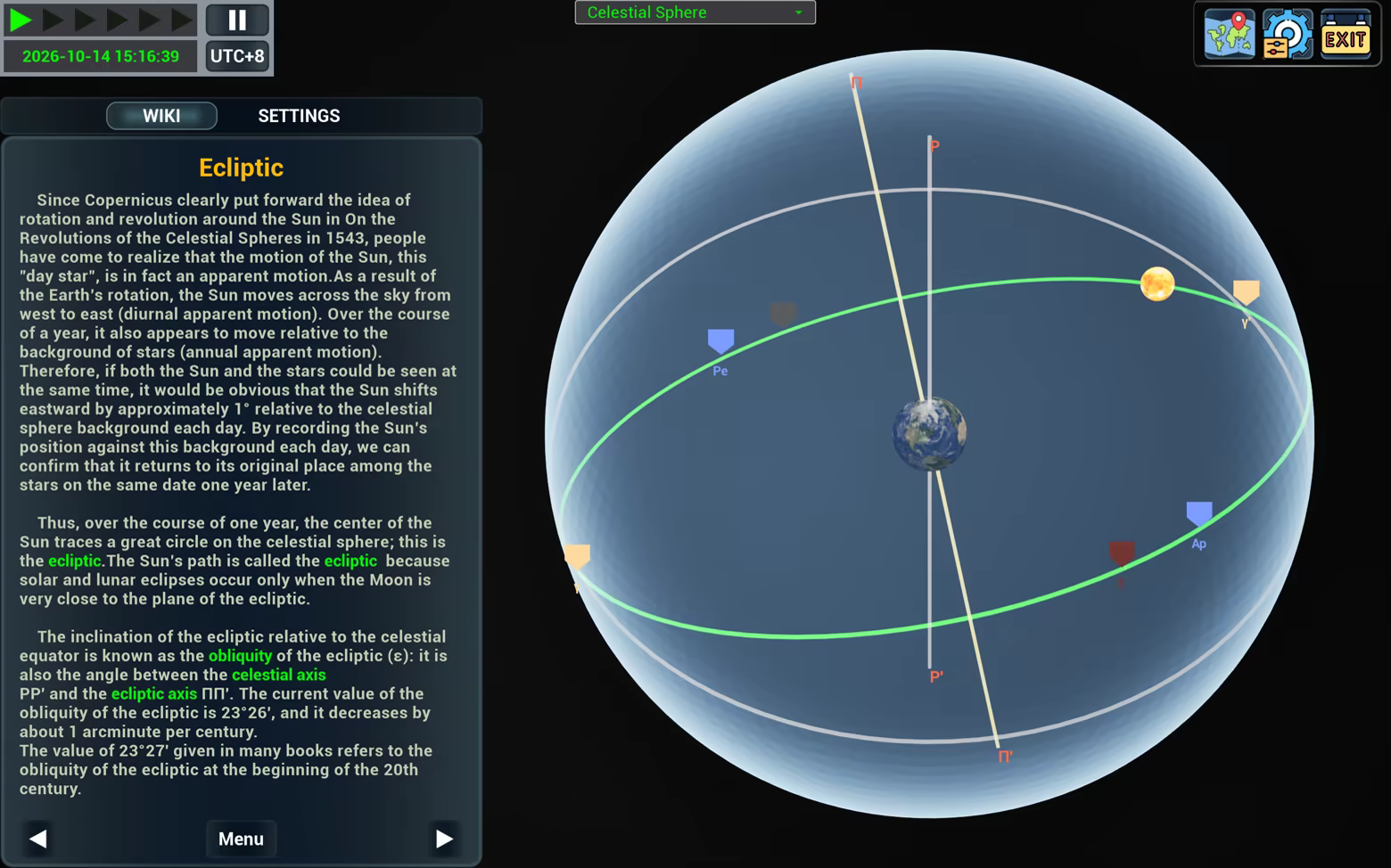

• Immersive Built-in Wiki: Access a detailed, illustrated encyclopedia that breaks down the history, geometry, and mathematical formulas behind every single dial.
