Jun 19, 2020

Factorio - Klonan

Read this post on our website.

New website (Sanqui)

Over the course of the past year, you have seen the team put a lot of effort into polishing the game to get it ready for a full release. There's no doubt this is the most important effort here: we're all here to play the game. At the same time, the website is often the first thing people encounter—and in for many, return to every week! Unfortunately, until this point the looks of our websites have been neglected. The current set of websites are a complete mishmash of styles that are not coherent and do not fit with the look of the game.

Which website am I looking at again?

We set out to rework the looks of our websites last year to make them harmonize with the final game.

Albert and Aleš worked together to design the new website and make mockups in a process not too dissimilar to the GUI work in the game. Of course, web technology is a different beast from anything the game uses. My task was to take the mockups for each page and implement them as closely as possible (my own creative liberties notwithstanding).

The process from original page to mockup to the new version

My approach to creating websites is conservative, and in a way mirrors the philosophy we use when developing the game. The Factorio website doesn't use a fancy modern JavaScript framework. I'm not a JavaScript hater. There is no harm in using JavaScript to make parts of the website interactive, and of course many web applications wouldn't be possible with it. But for a website like ours, avoiding the use of bloated JavaScript frameworks helps keep everything load and render quickly, and of course the website can be browsed without JavaScript as well.

To get the looks right, I set out to create a CSS framework to visually mimic the Factorio GUI style. Where possible, I avoided the use of images. This keeps the page fast and ensures it stays sharp on all resolutions and levels of zoom.

For instance, the buttons match their game counterparts closely, but are made only using shadows.

The only exception is the arrow facing to the right, which simply isn't possible to reproduce using CSS (I tried!). However, even then the performance is kept slick because the graphics for it are embedded in the stylesheet.

The layout for new pages with sleek grids is enabled thanks to modern CSS technologies like Flexbox and CSS grid (no floats, no tables).

At the same time, the mod portal also received the new design.

I also took the effort to unify login sessions between the main website and the mod portal, so you no longer have to log in twice.

This Friday Facts is the last time you're seeing the current (old) style, so enjoy it while it lasts! The new website will go live sometime next week. Once the new design is out, don't forget to click on the rocket!

Website content update (Klonan)

My part in the website update was going through all the pages and updating the content, with a side goal of reducing overall the number of pages we have, either by merging pages or just deleting pages we no longer value.

Since 1.0 is so close, I decided to just 'pretend' that 1.0 is already out, and update the content to match it. That means there is no mention of early access, ongoing development, roadmaps, alpha releases, etc. This allowed me to clean up quite a lot of the pages, and make them much neater and more clear. This might cause some confusion until 1.0 is actually released, but that's just 2 months away now, so its not a big concern for me.

Artwork page

While going through the Presskit, I found myself wanting to include some of the 'cool' images that we've made over the years that aren't really screenshots. Things like the 2020 Rocket poster, or the Player and the biter giving a toast the new year.

Initially I thought I would just throw them in the Presskit page willy nilly, and that will get them out there. We have some really nice images that are good for things like Youtube thumbnails, Website articles and reviews, etc. so I really wanted them to be accessible at least somewhere. However having them only on the presskit might mean they aren't really discoverable to the average player or new website visitor.

So I decided to add a brand new page, the Artwork page. Initially I just added the nice flashy posters, the 2020 rocket, GDS cover, etc. but I figured there are lots of interesting images we can include from the years of publishing the FFFs. So I went through all the 350+ blog posts, to try to find the best images to put up on the page. I wanted to avoid images that shows old graphics or potentially confusing/outdated information.

It feels like this Artwork page is a great showcase of all the work we've done over the years, and I am really happy with how it turned out. Gathering the best images and compiling them into the single page, it started to seem like we really are reaching the finish line, and we will have some closure on the alpha development. Its been a long journey, and while we have a lot to look forward to with Factorio development, part of me feels a bit sad knowing this chapter of the game is drawing to a close.

Jun 12, 2020

Friday Facts #351 - Beacon re-redesign & Simplified fluid mixing

Factorio - Klonan

Read this post on our website.

The Beacon Redesign (V453000)

The Beacon is one of the last entities that don’t have high resolution graphics yet. In the rather recent FFF-339, Albert presented the updated and redesigned Beacon. After your responses we realized some issues we hadn’t seen with the Beacon before, and we have taken some time to think about it...

The red tower design by itself is very impressive, which gave it so many plus points that we didn't focus enough on the fact that it is taking too much visual attention. In this case, this happens because of aggressive red colours, the big contrasty yellow eye-like circle, the entity being quite tall, and the electric beam animation. Random variations are usually helpful to make entities look nicer in clumps (like resources), but not in this case, especially as other built entities don’t have any variations.

The options to take from here would be to either update the original design, adjust the red tower, or start a new redesign.

The Beacon is a very special entity, either it doesn’t appear in a factory at all or very little, or it’s everywhere. It doesn’t really do anything by itself so it doesn’t really need to show much activity either.

The original design has its own problems and also saturates the screen very quickly, as they are bright, also tall, and they always move, attracting attention to the movement constantly.

As for the red tower, most of the top part would have to be removed which is almost a complete redesign already, but parts of the hole could be recycled for a new version...

We chose to start a new redesign, with the design goal of the Beacon trying to take much less attention.

The Beacon Re-redesign (V453000)

For everything we generally respect the idea of height, in the sense that the higher something is, the brighter it usually looks. The less important background is usually darker, while the foreground (entities) is usually brighter, especially at their top parts.

The red tower was put in a hole mostly to be able to create a really tall tower in a 3x3 bounding box yet not overlap the tiles above the entity too much.

What could be done instead is to put the whole Beacon in a hole entirely and therefore make it generally darker and less noticeable. This way we would change its idea from a tower to an underground electronic/powerful entity, and try to explain that the effect is being transmitted underground by cables.

Do notice that a lot of the meshes in the model are coming from Albert’s redesign, which was really helpful to get the new redesign done in a reasonable time.

The beacon is generally less saturated than any of the previous designs, which again makes it less intense, and makes it fit better in its typical habitat of concrete tiles, though it looks just fine on more natural terrain as well.

While the submerged design works well in terms of making the Beacon take very little attention away from the producer entities, there are multiple issues. Most importantly it doesn’t look like a Beacon on the first sight. As a side-effect, the Beacon starts looking very top-down without combating our perspective, though that would probably be possible to address by changing the design significantly.

And so a tower clawed its way back into the concept, to explain how the effect is transmitted. Just a slim and lightweight tower though, without taking too much attention.

The two black squares are actually module slots, and the Beacon now dynamically visualizes the modules inside.

This is conceptually questionable, as we definitely don’t want to start a precedent of adding visible module slots to every single entity, but the Beacon has no other use than the modules, so we think it's an acceptable exception.

The modules do take a bit more attention back again, but also remove some. With modules always visible, we could remove Alt-mode from the Beacon.

This means whenever you toggle Alt-mode on, you’re only seeing the overlay change on the producer entities.

See how much more breathing room do the assembling machines have in the screenshot above. As the Alt-mode overlay isn’t really useful most of the time on Beacons, we can afford to remove this visual clutter. It can of course be re-enabled by mods.

The module slots are procedurally tinted, so if a mod adds custom modules, it only needs to specify the tints at the definition of the module item without touching the Beacon at all.

https://cdn.factorio.com/assets/img/blog/fff-351-beacon-loop.mp4

It’s worth mentioning that one of the reasons why the Beacon got away without high resolution sprites for such a long time, is because it’s a late game entity for generally large factories, so the player mostly looks at them while zoomed out.

As you can see in the animation above, the tower has a subtle glow animation that explains the effect transmission when zoomed in, while almost invisible when zoomed out, trying to balance between being interesting close in, and non-disruptive far out.

The glow effect is also tinted by the colour defined by the module lights, in fact it averages the colour if two different modules are in the Beacon, which isn’t very useful for the base game but for some mods it could be a nice detail.

As usual, we plan to release the new Beacon next week.

Fluid Mixing Prevention - take 9001 (Rseding91)

The original concept of fluid mixing prevention sounded great: mixing fluids is (virtually) never desired - so let’s stop it from happening - that's simple. This is the part where the movie stops and the narrator says: "But it wasn't simple, it wasn't even close to simple..." To keep things short I'll just say: complexity compounded with more complexity and an entire game built without the concept of "fluids can't mix" meant over a year and a half later there are still parts that can't be handled "gracefully".

When the concept was first talked about it seemed... off. Mixing fluids is not desired - and the solution is to full-stop prevent it? But let’s take that same solution and try to apply it to something else: belts. Mixing belt contents is (mostly) not desired (people have gone full crazy and made setups around it... but that's another story). So what if the game tried to stop you from mixing belt contents? Sounds crazy to me.

But it happens: belts get mixed and it's not as big of a problem as fluids getting mixed - why is that? Because there's a quick and easy way to fix the problem: just 'hoover up' the items from the belt and its fixed. There's no quick and easy way to fix mixed fluids - you have to pull up the entire length of pipe to get it all out. Even if you don't mix fluids - but just get the wrong one in a pipe - it's still a huge pain to fix.

This idea isn't new - it was talked about back when fluid-mixing-prevention started - but it was recently brought up again and we decided to give it a try: simple fluid mixing prevention. Just try to handle the most common case - manually building things - and in the more complex cases where mixing might happen, provide a quick-and-easy way to fix it: a button to flush all of a given fluid from the pipes.

https://cdn.factorio.com/assets/img/blog/fff-351-fluid-flush.mp4

This new simplified system will be ready for release next week, so you can give it a try and let us know what you think.

Jun 5, 2020

Friday Facts #350 - Electric mining drill redesign

Factorio - Klonan

Read this post on our website.

Electric mining drill redesign (Ernestas & V453000)

The electric mining drill is one of the older designs still in the game, and we have had our eye on it for a long time as a candidate for redesign.

We would have loved to rework the mining drill in 0.15 when we added high resolution graphics and the pipe patch for it, but we had many nuclear related graphics to do for 0.15, so we just did the necessary minimum and postponed the full redesign. Now was finally the time we could unleash Ernestas onto it.

The old design

The most problematic aspect we see is the weak radial animation that’s more like gently harvesting a field, rather than aggressively mining and destroying the planet.

The original mining drill is also very flat like a top-down square. In general we try to avoid square entities like the plague, as they tend to look disintegrated with the world because they don’t try to hide that their perspective isn’t correct.

The pipe patch for uranium ore mining makes the mining drill look like a different entity as it is massive compared to the ultra lightweight drill. Now that we can account for the pipe patch from the start of the design process, we can make it better integrated.

The new design

The drill bit is the part that does the action and therefore is the main characteristic for the entity. We spent multiple iterations trying to find the right shape for it first.

We tried a tricone, four metal drills, a cone shaped drill bit, and none of them worked. Mostly the problem was visibility or too many details, which became even worse while drilling. Having a small pixel area is what usually limits us on what we can create, and also things need to be recognizable from far away.

Through trying various options, we chose to use a similar solution to the burner mining drill, as that is already established in the Factorio language. It makes it clear that the miners are one family of entities.

The old animation had one big benefit - it could work non-stop and move around the collision box so it looks like it’s harvesting from various tiles. With the new construction of the drill, it has to lift to move around. However, the drill can be outputting resources even when the drill bit is lifted, so we have added a working LED and a tintable layer for resources being dropped to the output, making it clear when the drill is in a working state.

Since the movement of the drill is procedural and Ernestas was smart about optimizing the spritesheet space, we can save a lot of VRAM compared to the original mining drill (about 40MB). We were considering a lot more additional animations but it would multiply VRAM requirements too much, or it would become too procedural and too complicated to implement.

The resource layer, the pipe contents and the smoke emitted by the drill bit are all tintable layers, specified by resources, which make it very dynamic and mod friendly.

The remnants ignore rotations, but have 4 variations. Typical mining fields usually use only 2 rotations anyway, so this way it always looks a bit nicer.

Click to view full resolution

The sound of the mining drill has also been updated. Unfortunately Factorio does not support multiple working sounds per entity, which also means we can’t synchronize sounds with the animation. So Ian had to invent a sound that would work nonstop. Since there is almost always more than one mining drill working, it should be fine.

https://cdn.factorio.com/assets/img/blog/fff-350-08-new-drill-animation.mp4

We were finishing the mining drill in the last few weeks so we couldn't release it with the new icons. We didn't feel like creating a new icon for the old design and found it to be a cute little hint that the redesign is coming. Hopefully the confusion why the new icon looks completely different to the entity will be cleared up next week when we release the redesign presented in this post.

May 29, 2020

Friday Facts #349 - The 1.0 plan

Factorio - Klonan

Read this post on our website.

Hello, today we have some big news.

The 1.0 plan (Klonan)

In FFF-321 we announced a release date for version 1.0. Given recent events we have decided to make an amendment to the date of 1.0.The new date we are aiming for is Friday August 14th 2020, which is 5 weeks earlier than the original date.

The main reason to change the release date is the release of Cyberpunk 2077.In January this year, CD Projekt Red announced a delay to the release of Cyberpunk 2077, to September 17th, 1 week before our Factorio 1.0 launch.We think any release close to such a monumental game is going to feel some negative effects, such as everybody playing and covering Cyberpunk and taking attention away from other games.

So we thought it was best to try release either before Cyberpunk or quite a while after it.Given the two choices, we opted to bring the release date forward. There are several reasons why we are choosing to release earlier:

Descoped goal

When we announced the date (FFF-321), we had plans for many things to be in the final release. The main topics were the new campaign, fluid algorithm improvements, and the full GUI rewrite.Due to independent reasons, we have cancelled the new campaign (FFF-331), postponed the fluid improvements, and cut a lot of the aspects of the GUI rewrite (FFF-348).

Staying on schedule

Apart from descoping some features, the other work we've been doing has been progressing at a good pace. The 0.18 experimental release structure (FFF-314) is really helping to keep things on track.The original estimate was made with some concession for delays, that "things always take longer than expected".Well for the last 6 months, most things haven't been taking longer than expected, and we've been finishing topics quite effectively.

The sooner the better

The general feeling in the office is that the game is pretty much done, and that we want to get it released as soon as possible.The sooner we get some closure on version 1.0, the sooner we can start thinking about fun and exciting new things.

So due to the co-incidence of cancelling several major features, we can afford to bring the release date forward. To be clear, we didn't cancel or postpone any features due to the Cyberpunk release date.

This new release date gives us 10 weeks, and from this point until Friday August 14th, the main focus for the team is on finalising the game, updating the trailer, and preparing marketing materials.

Locale plan and Locale freeze (Klonan)

One part of finalising the game comes in finalising the community translations of the game. For a long time we have used Crowdin for sourcing all the translations. Crowding has worked really well, and is deeply integrated into our workflow (FFF-48).

However some languages are not 100% covered, and there has not been any overall proofreading. For this reason we chose to look for a professional translation company to help fill in the gaps and proofread everything. We specifically needed a company that will work through Crowdin, as the community there has years of experience with the game, and the system won't need any management on our side.

After consultation with many companies and many other game developers for their thoughts, we have decided to partner with Altagram, based in Berlin, Germany.

With the final GUI update finished, we have frozen the locale, which means no more additions or changes (as much as is reasonable). There will be a proofreading of the English source texts, and after that a proofreading of all the target languages.

For absolute clarity, Altagram has detailed the plan and the process from their perspective:

Once we get the greenlight that the community has completed their contributions to the translations in Crowdin, we’ll start proofreading the English source text to offer any grammar or stylistic improvements, as needed. Once the English is polished, we’ll get started on proofreading for the secondary languages.

The linguists, who are all gamers themselves, and experts in game localization, will work their magic to ensure that the target language is as true to the source text as possible, to ensure that all players of Factorio, regardless of the language they play in, will have the same experience.

Some things that the linguists will check for when proofreading the target language are: Ensuring that the text itself, especially all in-game terms, is consistent throughout; that spelling and grammar is correct; and that the translations carry the same meaning and emotion as intended.

After we offer our suggestions, the texts will be sent back to the community for their final approval before implementation into the game.

From now until 1.0 release, Locale freeze mainly means that we'll only be working on topics that don't require new strings, such as bugfixes, new graphics, sound design, etc.

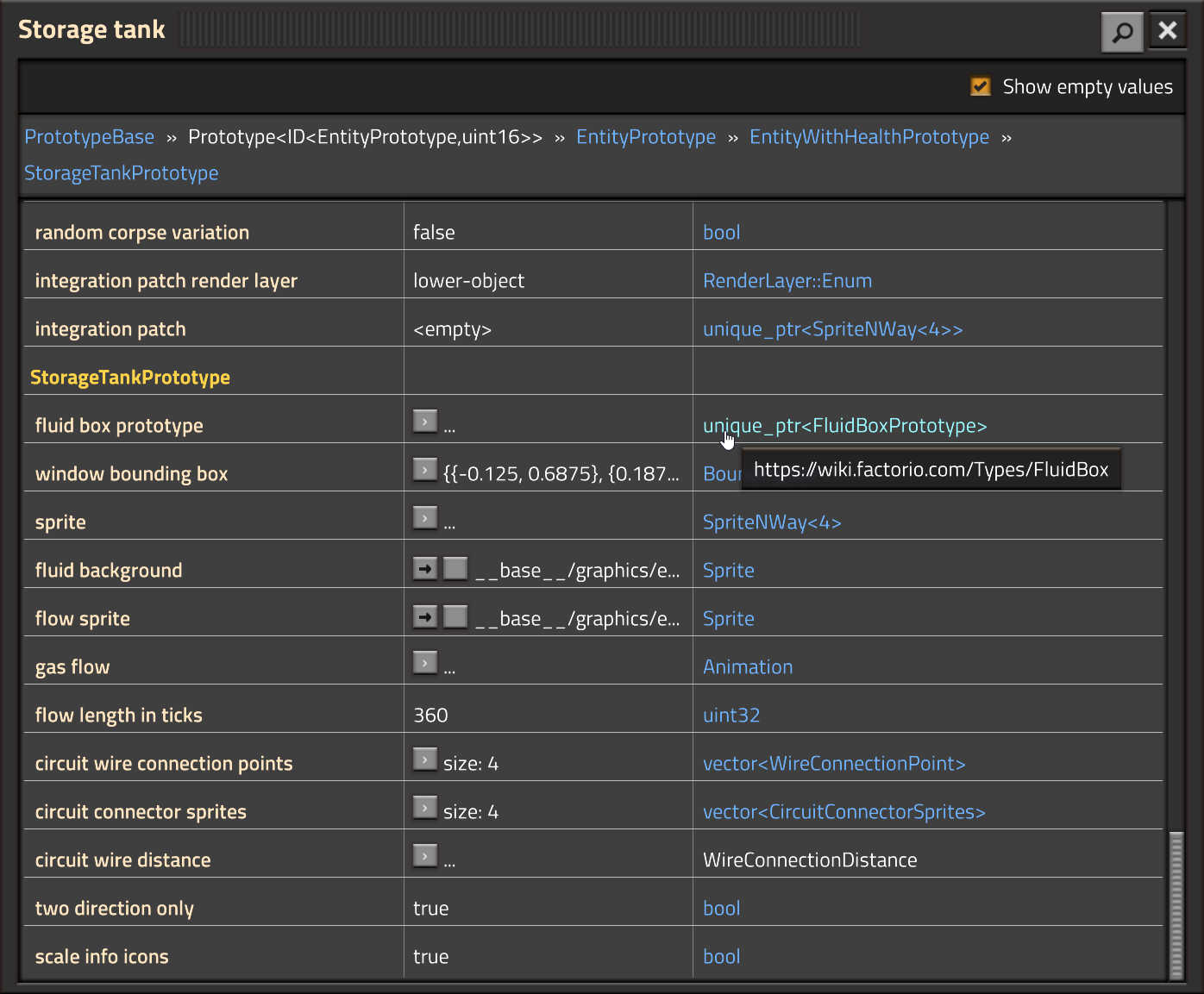

Prototype Explorer GUI/Prototypes GUI (Rseding)

Inspiration

Factorio has a lot of debug features and tools built into it over the years. Some of them are used extensively (show FPS/UPS) and others we wonder how we ever did without (GUI style inspection tooltip). Every one of them was added for a purpose and then ended up providing far more utility than its original purpose. With that in mind, and because they also end up being a lot fun (to me); I was working on fixing an issue I found with the GUI style inspection tooltip logic and thought to myself: wouldn't it be nice to have something like this for all the prototypes in the game? Is that even something I could do realistically? How would it look, how would it handle all the nesting that happens... but it sounded fun.

And so I decided to see what utility such a thing could have:

Figure out if a mod has tweaked or changed something - or if it was supposed to and didn't (common in modded bug reports and during mod development)
Provide a place to extract information that the game doesn't show anywhere else (not everything is exposed through the mod API, and it's unrealistic to expect anyone to remember the entire API)
Link from game concepts to the wiki explaining more about them.

The list of benefits seemed worth at least tinkering with the idea.

Technical design

The first part I needed to figure out was - how was I going to get everything shunted into a GUI. Factorio is written in C++ and C++ does not have reflection. There's no easy way to say "for all of the variables this thing has, do this". Really the only way to get everything covered is to send each thing to the GUI. It's not pretty, but we also don't make changes to prototypes frequently at this stage in development. Additionally, if something is "wrong" it doesn't cause crashing/errors; it's an easy fix that anyone can do. A lot of boring typing later that part was covered.

Nothing is ever easy or simple

For each thing to show: show the name, show the value, show the type. It sounded simple but it never is.

The type can be incredibly verbose and or just useless to a human: what does this even mean? "class std::basic_string<char,struct std::char_traits<char>,class std::allocator<char> >" (it's a string...)
The value can be huge - so collapsing needed to be created
The value can be an array of something, so "empty" should be shown for empty arrays
Arrays of things with 1 value really should just show the 1 value
Optional things should show "empty" when not set
Some things will link to another thing so linking needed to be create
All of this has to work at any nesting level

But that's Factorio, and the polish is what makes it nice to use. I don't regret any of it.

Wiki linking

Near the early stages of development I decided that the easiest way to convey to anyone using this what some "type" is and how it's supposed to be used is to show the wiki page about it. The wiki has very detailed information about a lot of what this was going to be showing and it seemed only logical to utilize it. But I didn't want to hard-code links... that never ends well.

My idea: a page on the wiki that provides a mapping of game type -> wiki URL. The game would download the mapping and as it filled in the GUI if it found a type that existed in the mapping it would link it to the wiki. Bilka got the wiki side of it quickly setup. The game side... "nothing is ever easy or simple".

I didn't want to download the wiki page every time the GUI opened - that would be a waste
I didn't want to download the wiki page every time the game launched - the page wouldn't change frequently and so would be a waste
But the page still needed to be re-downloaded when it changed
I didn't want the game to pause while the download ran
It needed to be fault tolerant (not everyone has an internet connection, or can even say the page will download correctly)

And so, a simple "link the type to the wiki" turned into:

It remembers the last time it downloaded the wiki page and what the revision ID was
It only tries to download the revision ID the first time one of the GUIs is opened
If the revision ID changed, or it didn't have the mapping locally, it tries to download the latest wiki mapping
If the download succeeds, it saves it for next time and populates the GUIs links
If any of this fails it logs what went and silently continues running (this is a the internet after all, random failure is expected)
It all happens in a background thread so the game doesn't pause while this logic works

And it all works perfectly.

Native Lua serialisation (Boskid)

Last week I was requested by Rseding to look how could we implement a stateful Lua table iterator since we often iterate over Lua tables from C++ side, and this operation is slow. This forced me to learn some internals of Lua and how it stores tables. Up to this point, when a map was saved and the Lua state had to be serialised, we used serpent.dump (from serpent library) to convert the variable called global into a string on the Lua side and then take it out and store it within the save.

Since going through Lua tables from the C++ side happened to be quite easy, I have decided to implement, for an experiment - a native Lua serialiser. This allowed us to completely skip using serpent.dump and instead save them directly. My primary goal was to reduce the loading time since in the old format the saved data was a string that Lua had to parse and execute.

As was noticed later (not by me), the save speed improved a lot due to fact that no Lua operations are executed during save, just pure traversal over data to save in a linear time.

For measurements I was using one save file that has quite a lot of script data in it (script.dat is around 60MB), the result is the average over 3 test runs.

Saving:
- Old = 285.429s
- New = 2.847s
Loading:
- Old = 47.034s
- New = 22.755s

This values also includes some optimisations implemented by Rseding.

Changing the serialiser however has its costs. serpent.dump was doing serialisation of Lua functions stored in globals. They were officially unsupported by us anyway but some mods were using them "since they seem to work". With the new serialiser I have decided to not implement it at all due to its complexity and inherent limitations (closures were broken anyway). This broke some mods (even some base game scenarios) but it is rather easy to fix.

An additional consideration we had was if it should fail to save when there are Lua functions in global during save, or should it silently delete them (as happens with metatables). The first approach was considered to be the best to quickly catch all non conforming mods but later we have decided that deleting them on save (and providing some info into log file) was better because a migration was almost impossible due to a base game migration for 0.18.28 that requests to reload all script, that as a side effect: saves the Lua state which would abort saving immediately due to Lua functions still in globals.
